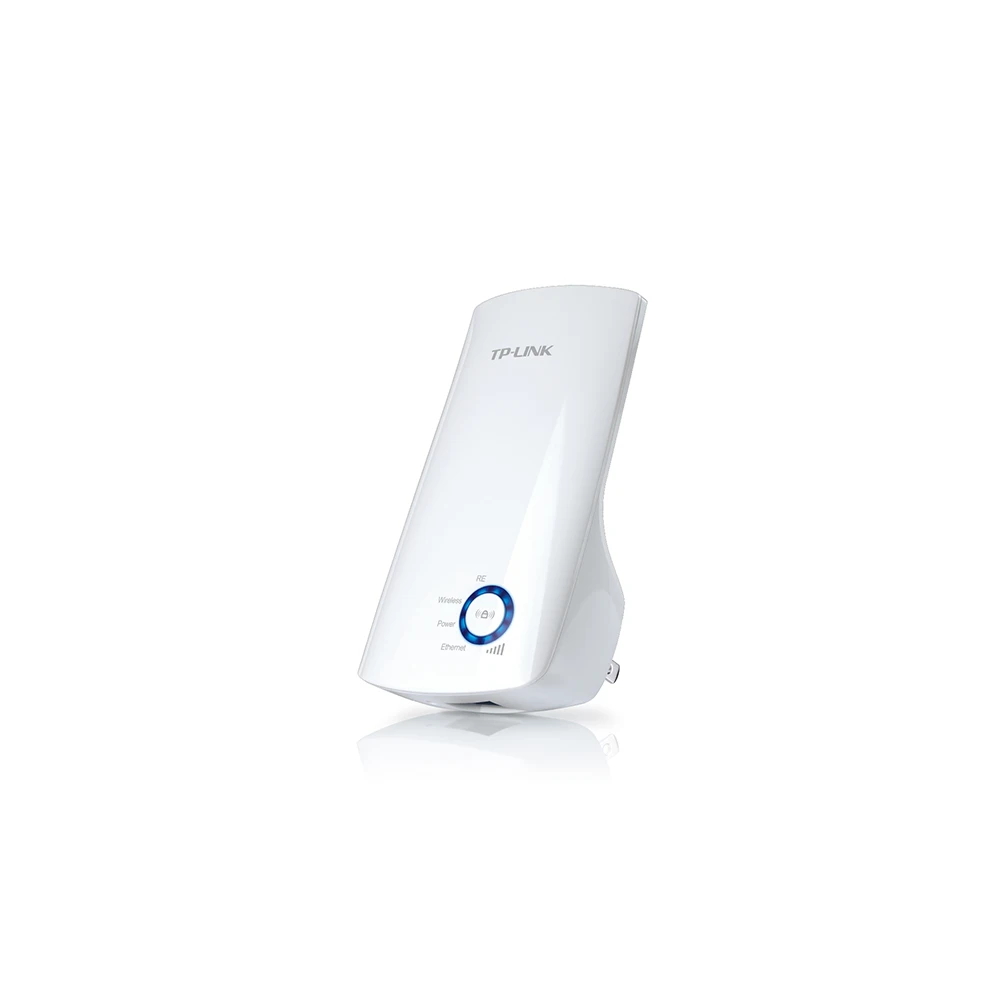

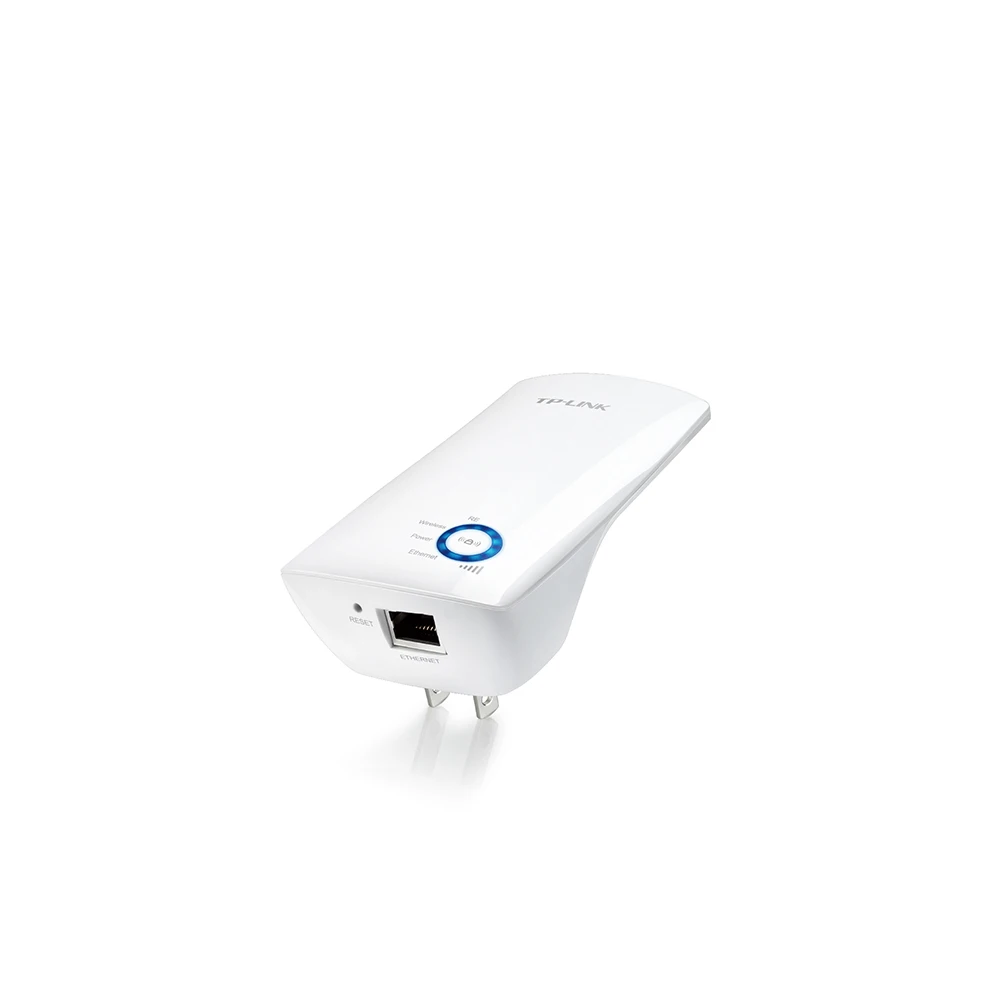

300Mbps Universal Wi-Fi Range Extender
Range Extender mode boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly*- Miniature size and wall-mounted design make it easy to deploy and move flexibly
- Easily expand wireless coverage at a push of Range Extender button*

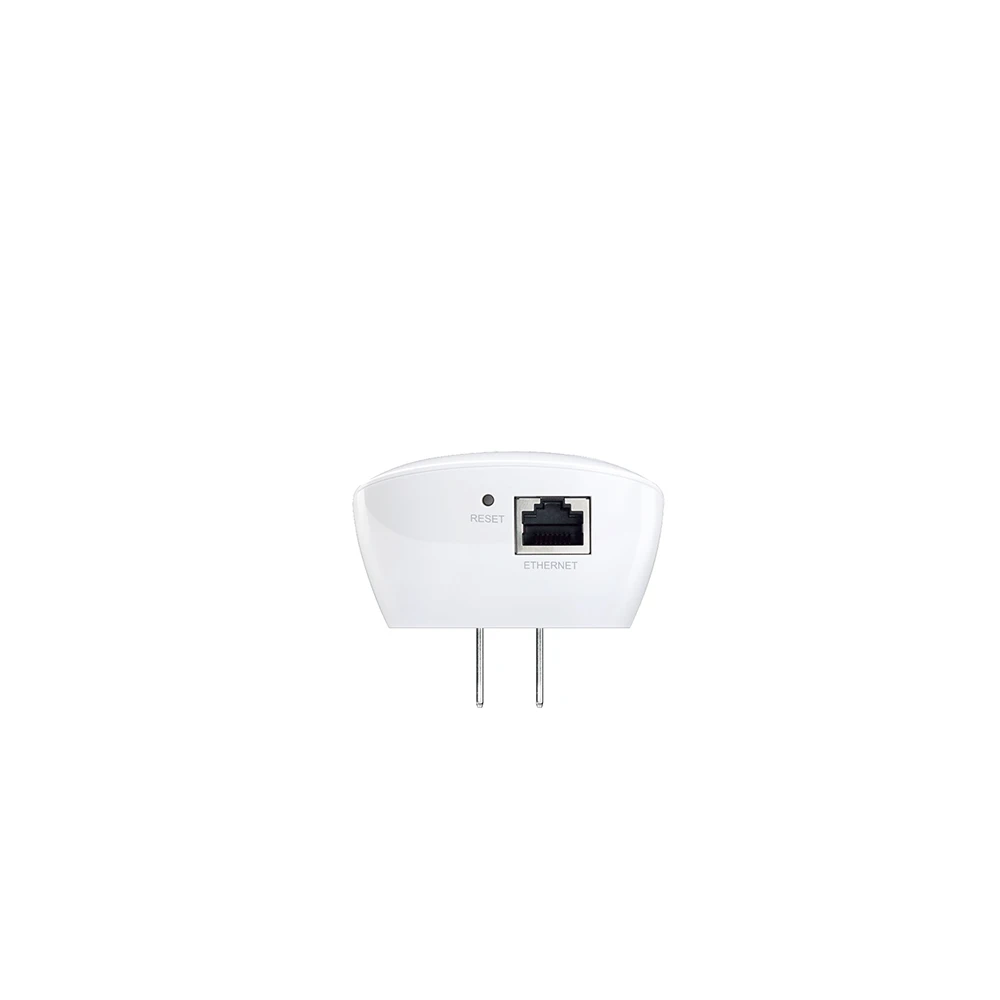

- Ethernet port allows the Extender to function as a wireless adapter to connect wired devices
- Tether App allows easy access and management using any mobile device
- LED Control function includes a Night Mode for peaceful sleep
Working Modes
Range Extender/Access Point
HARDWARE FEATURES
Interface
1 * 10/100M Ethernet Port (RJ45)
Ports
1 x 10/100Mbps Ethernet Port (RJ45)
Button
RE (Range Extender) Button, Reset Button
Input Power
100-240V~50/60Hz
Power Consumption
About 3W
Antenna
2 * internal
Wireless Standards
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency
2.4~2.4835GHz
Signal Rate
11n: Up to 300Mbps (dynamic)
11g: Up to 54Mbps (dynamic)
11b: Up to 11Mbps (dynamic)
Reception Sensitivity
270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Wireless Functions
WMM (Wi-Fi Multimedia)
Wireless MAC Address Filtering
Wireless Statistic
Domain Login Function
Wireless Security
64/128/152-bit WEP
WPA-PSK / WPA2-PSK
System Requirements
Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7,
8, 10, Mac® OS, NetWare®, UNIX® or Linux.
Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
