Interface

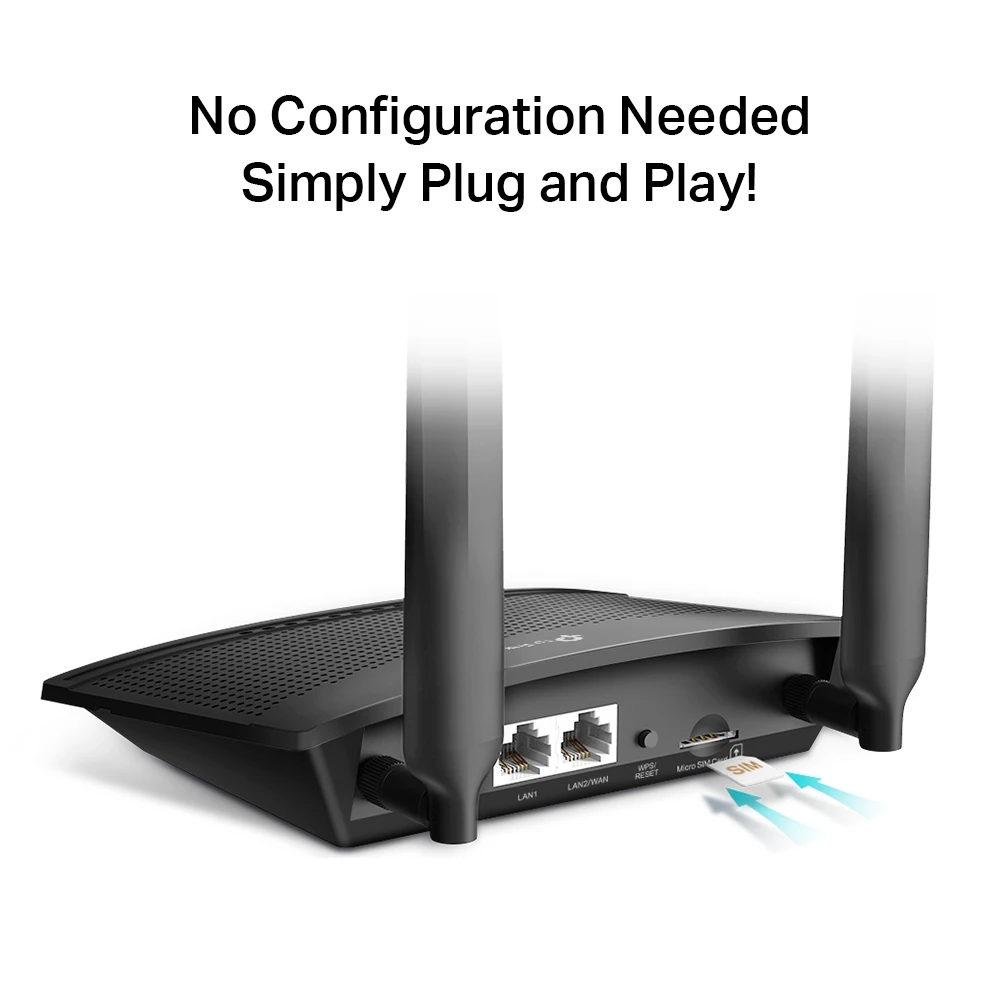

1 10/100Mbps LAN Port,
1 10/100Mbps LAN/WAN Port,
1 Micro SIM Card Slot
Button
WPS/Reset Button
External Power Supply
9V/0.85A
Antenna
2 Detachable External 4G LTE Antennas
Antenna Type
V3/APAC: 2 Internal 4G LTE Antennas
V4/V2/V1: 2 Detachable 4G LTE Antennas
WIRELESS FEATURES
Wireless Standards
IEEE 802.11b/g/n
Frequency
2.4 GHz
Signal Rate
300 Mbps
Reception Sensitivity
11g 54M: -74 dBm
11n HT20: -71 dBm
11n HT40: -68 dBm
Wireless Functions
Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics
WAN Failover
Yes
Wireless Security
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Network Type
4G: FDD-LTE: B1/B3/B5/B7/B8/B20 (2100/1800/850/2600/900/800 MHz)
TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)
3G: HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)
Security
IPv4 SPI Firewall, IP and MAC Address Binding
Operating Modes
3G/4G Router, Wireless Router
WAN Type
Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
Management
Local Management, Remote Management
DHCP
Server, DHCP Client List, Address Reservation
Port Forwarding
ALG, Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS
DynDns, NO-IP
Protocols
IPv4, IPv6
Guest Network
2.4 GHz Guest Network
Administration
Upgrade Firmware, Factory Default, System Log, Diagnostic Tools
Requirements
Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,
NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser
Micro SIM Card
Environment
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
