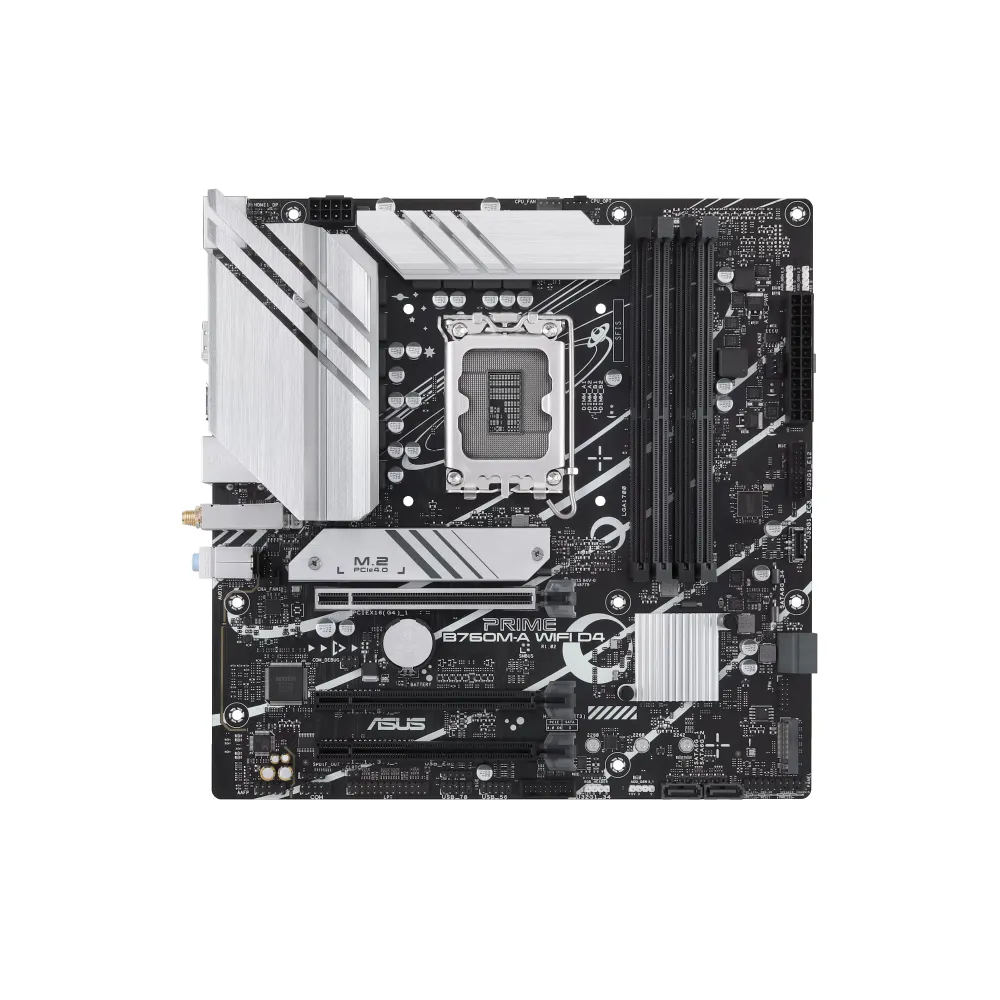

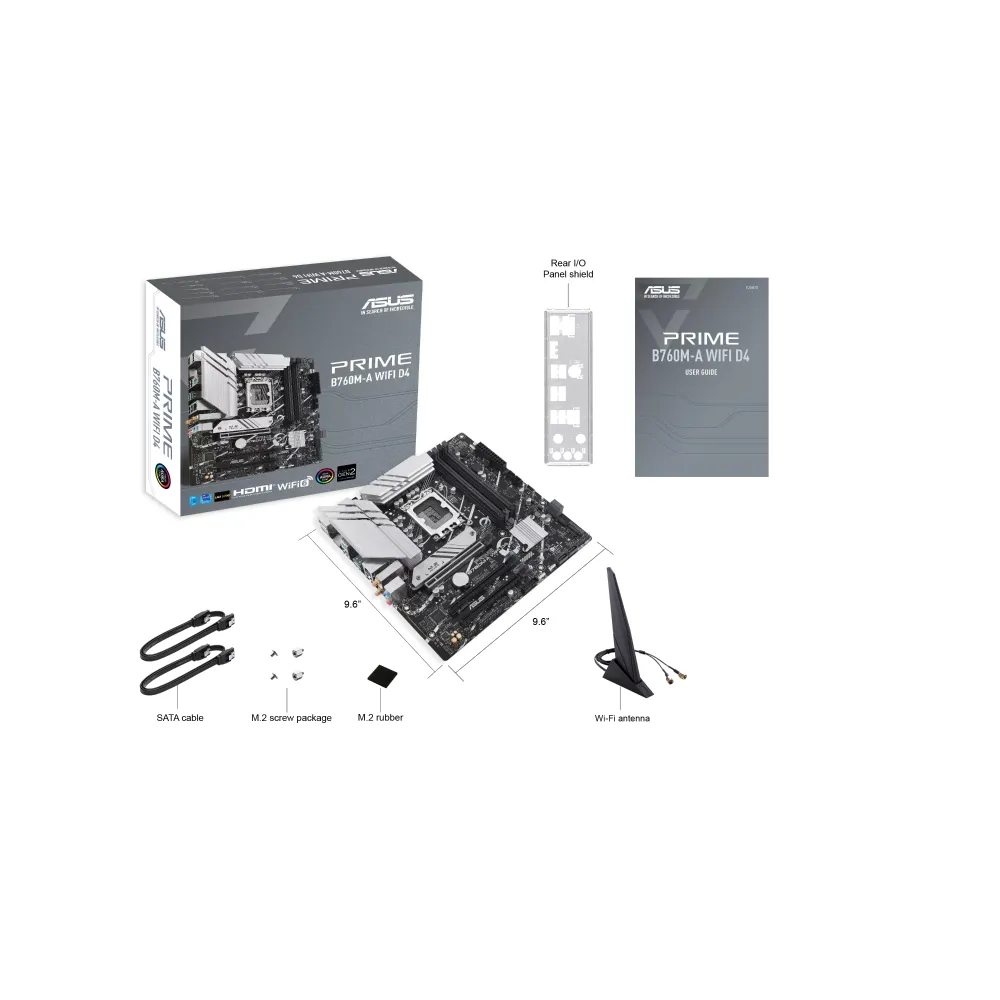

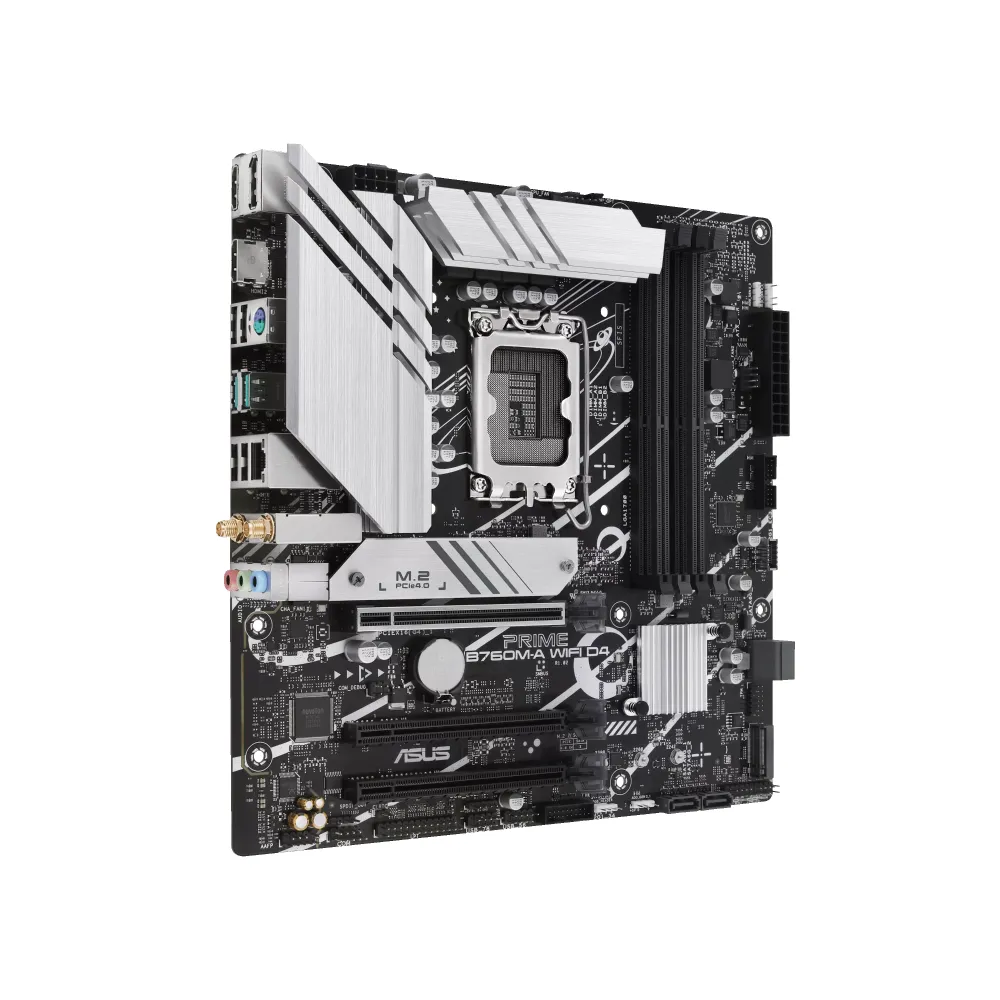

Asus PRIME B760M-A WIFI D4 Intel® B760 (LGA 1700) mATX motherboard

720,000 Ks

Choose Specifications

LGA 1700 (12th Gen, 13th Gen) / Micro-ATX

(Available Stock: 1)

Notify me when available

Description

form factor mATX Form Factor | 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
socket Intel® Socket LGA1700
chipset Intel® B760 Chipset
cpu
  • Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
memory
  • 4 x DIMM, Max. 128GB, DDR4 5333(OC) to 2133 Non-ECC, Un-buffered Memory
  • Dual Channel Memory Architecture
  • Supports Intel® Extreme Memory Profile (XMP)
  • OptiMem II
storage
  • Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10
expansion slots
  • Intel® Core™ Processors: 1 x PCIe 4.0 x16 slot
  • Intel® B760 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 4.0 x16 slot (supports x1 mode)
usb
  • Rear USB (Total 6 ports): 2 x USB 3.2 Gen 2 ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A)
  • Front USB (Total 10 ports): 2 x USB 3.2 Gen 1 headers (support 4 ports), 1 x USB 3.2 Gen 1 connector (supports USB Type-C®), 2 x USB 2.0 headers (support 4 ports), 1 x USB 2.0 header (supports 1 port)
audio
  • Realtek 7.1 Surround Sound High Definition Audio CODEC
  • Audio Shielding
  • Premium audio capacitors
  • Dedicated audio PCB layers
back panel ports
  • 2 x USB 3.2 Gen 2 ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A), 1 x DisplayPort, 2 x HDMI® ports, 1 x Wi-Fi Module, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks, 1 x PS/2 Keyboard/Mouse combo port
internal i/o connectors
  • Fan and Cooling: 1 x 4-pin CPU Fan, 1 x 4-pin CPU OPT Fan, 2 x 4-pin Chassis Fan
  • Power: 1 x 24-pin Main Power, 1 x 8-pin +12V Power
  • Storage: 2 x M.2 slots (Key M), 4 x SATA 6Gb/s ports
  • USB: 2 x USB 3.2 Gen 1 headers, 1 x USB 3.2 Gen 1 Type-C connector, 3 x USB 2.0 headers
  • Misc: 3 x Addressable Gen 2 headers, 1 x Aura RGB header, 1 x Clear CMOS, 1 x COM Port, 1 x Front Panel Audio (AAFP), 1 x LPT, 1 x S/PDIF Out, 1 x SPI TPM (14-1pin), 1 x System Panel header
bios
  • 128 Mb Flash ROM, UEFI AMI BIOS
  • ASUS EZ DIY: ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode
warranty 2 years
