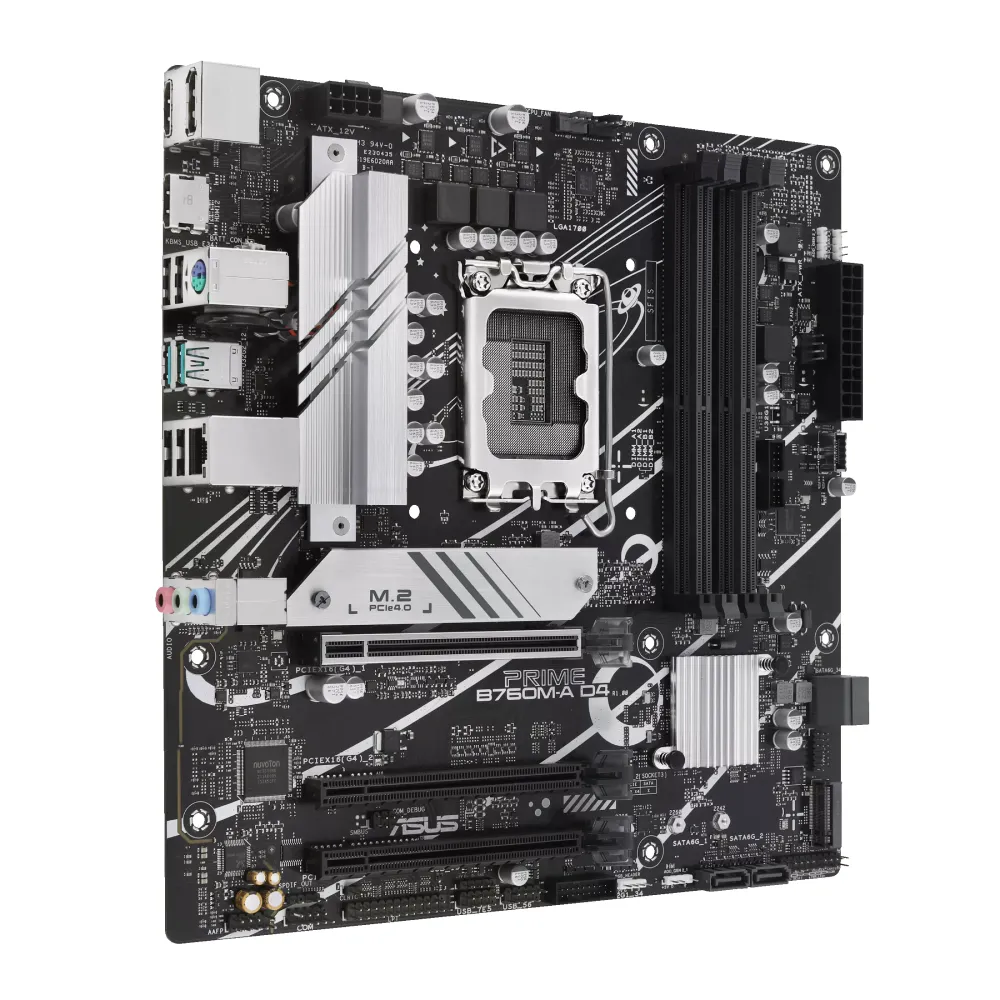

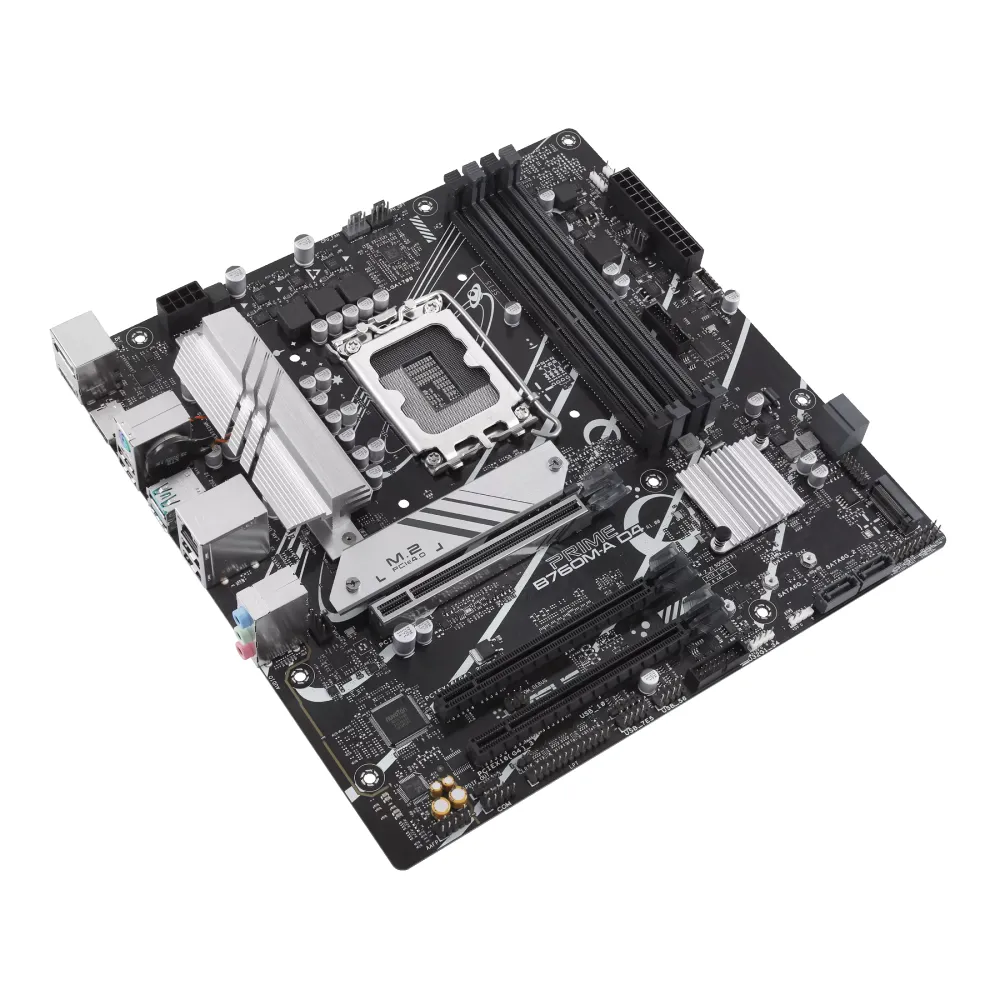

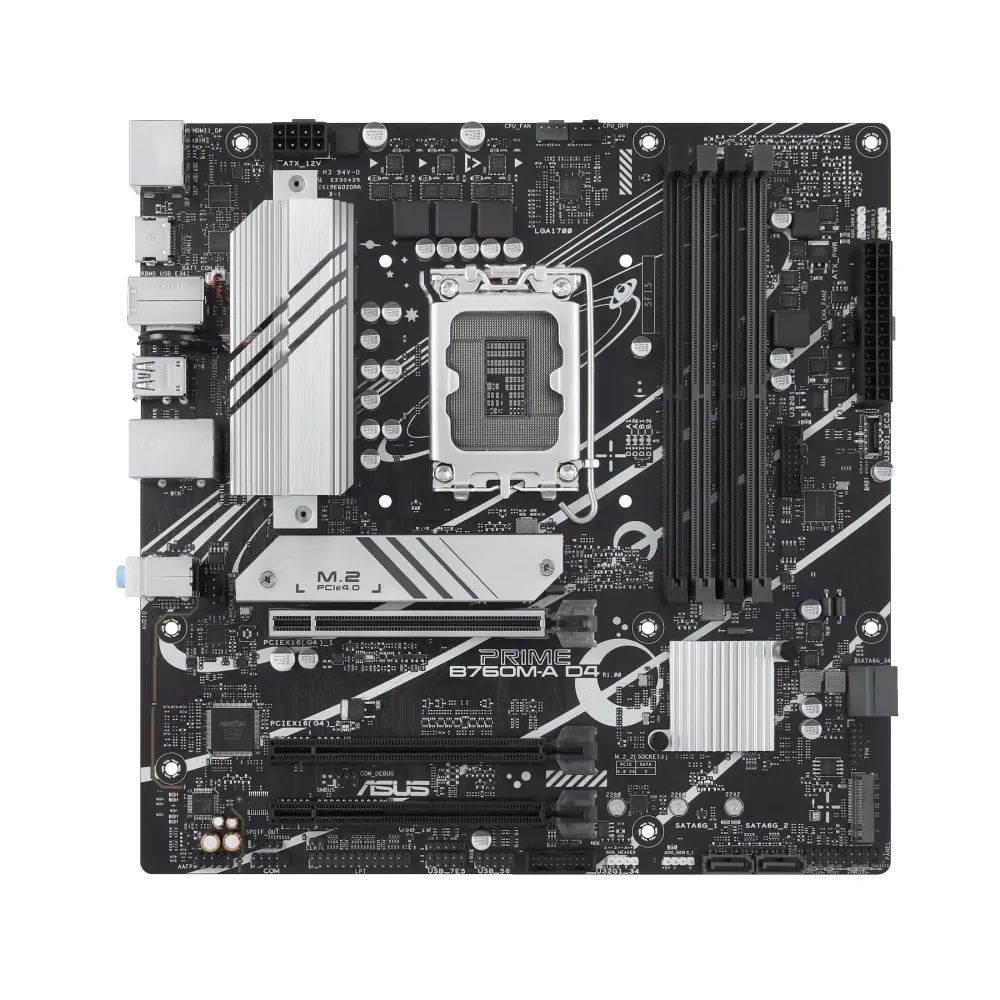

Asus PRIME B760M-A D4 Motherboard

560,000 Ks

Choose Specifications

LGA 1700 (12th Gen, 13th Gen) / Micro-ATX

(Available Stock: 1)

Notify me when available

Description

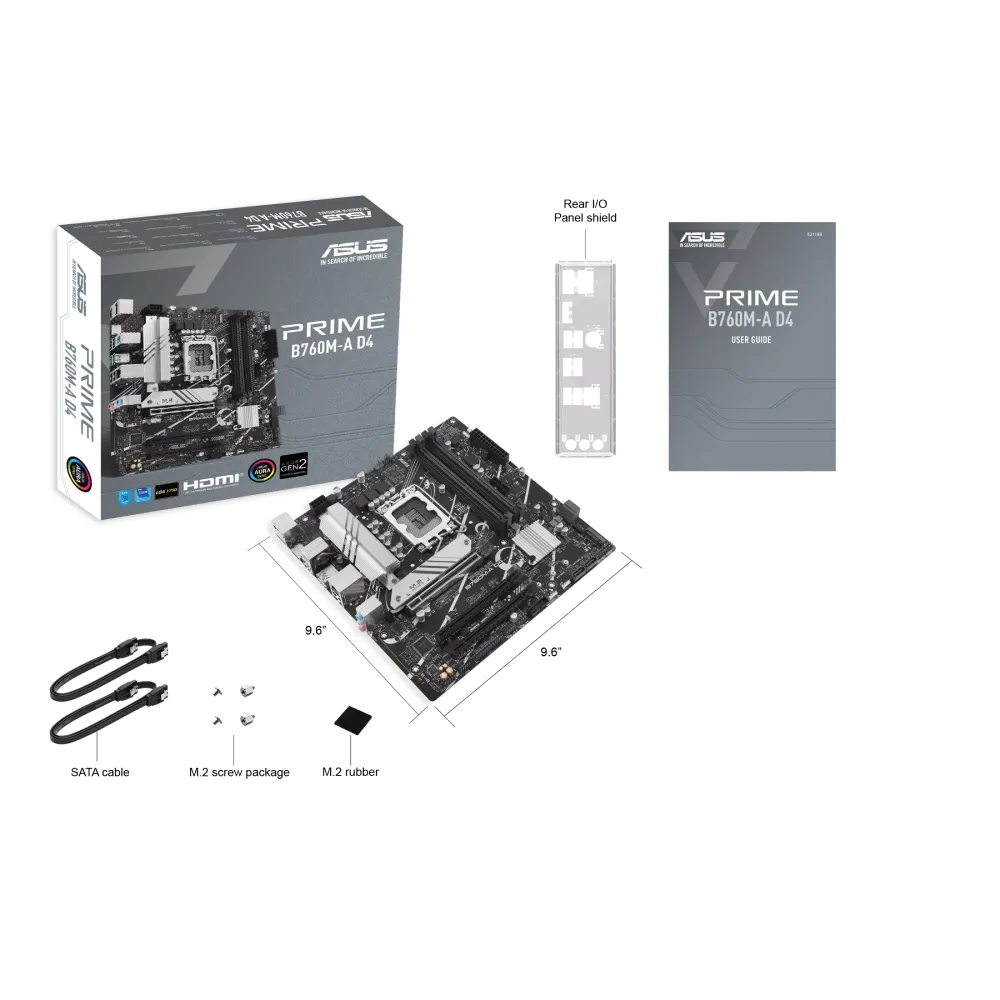

form factor mATX Form Factor (9.6 inch x 9.6 inch / 24.4 cm x 24.4 cm)
socket Intel® Socket LGA1700
chipset Intel® B760 Chipset
cpu
  • Supports Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
memory
  • 4 x DIMM, Max. 128GB, DDR4 non-ECC, Un-buffered Memory
  • Supports up to DDR4 5333(OC)
  • Dual Channel Memory Architecture
  • Supports Intel® Extreme Memory Profile (XMP)
  • OptiMem II
storage
  • Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports (M.2_1 CPU: type 2242/2260/2280 PCIe 4.0 x4 mode
  • M.2_2 Chipset: type 2242/2260/2280 PCIe 4.0 x4 mode)
  • Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10
expansion slots
  • 1 x PCIe 4.0 x16 slot (from CPU)
  • 2 x PCIe 4.0 x16 slots (from Chipset, 1 supports x4 mode, 1 supports x1 mode)
usb
  • Rear USB (Total 6 ports): 2 x USB 3.2 Gen 2 (Type-A), 4 x USB 2.0 (Type-A)
  • Front USB (Total 10 ports): 2 x USB 3.2 Gen 1 headers (support 4 additional ports), 1 x USB 3.2 Gen 1 connector (supports Type-C®), 2 x USB 2.0 headers (support 4 additional ports), 1 x USB 2.0 header (supports 1 additional port)
audio
  • Realtek 7.1 Surround Sound High Definition Audio CODEC
  • Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Up to 24-Bit/192 kHz playback
  • Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers

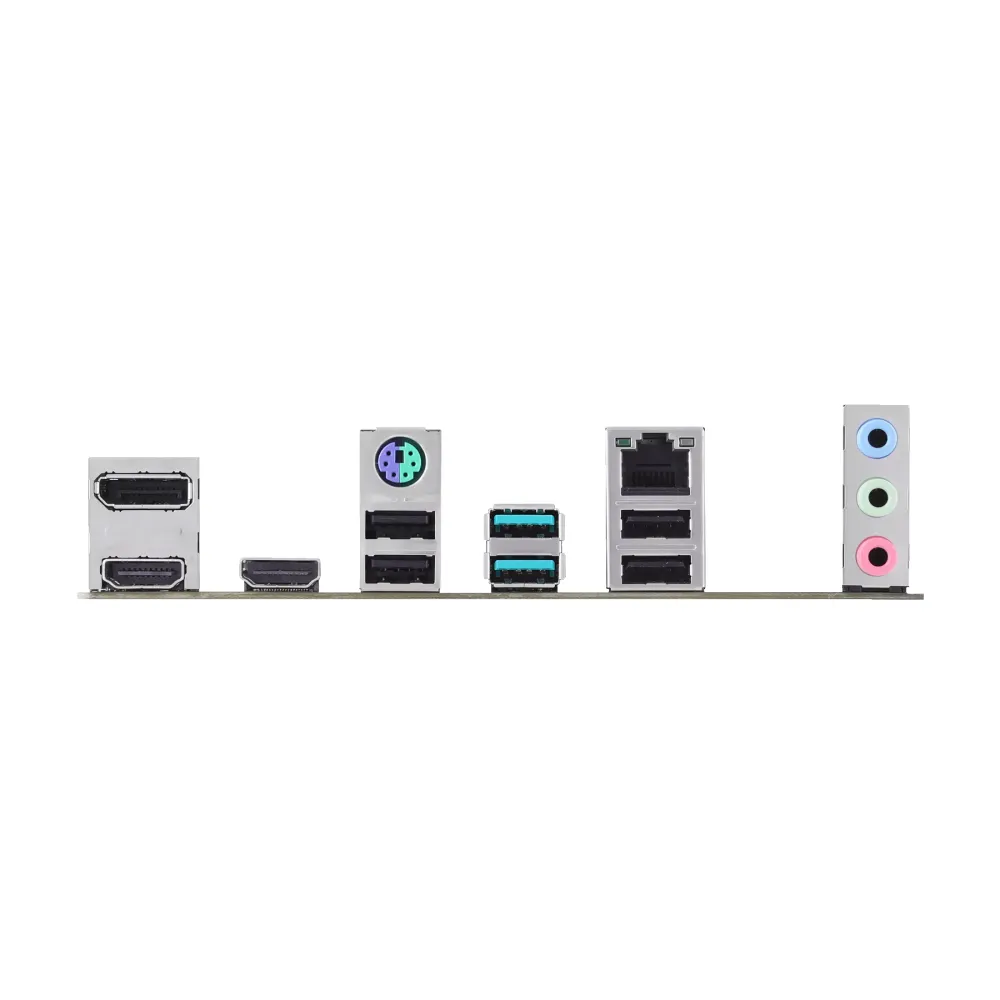

back panel ports
  • 2 x USB 3.2 Gen 2 ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A), 1 x DisplayPort, 2 x HDMI® ports, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks, 1 x PS/2 Keyboard/Mouse combo port
internal i/o connectors
  • Fan/Cooling: 1 x 4-pin CPU Fan, 1 x 4-pin CPU OPT Fan, 2 x 4-pin Chassis Fan
  • Power: 1 x 24-pin Main, 1 x 8-pin +12V
  • Storage: 2 x M.2 slots (Key M), 4 x SATA 6Gb/s
  • USB: 2 x USB 3.2 Gen 1 headers, 1 x USB 3.2 Gen 1 connector (Type-C®), 2 x USB 2.0 headers, 1 x USB 2.0 header
  • Misc: 3 x Addressable Gen 2, 1 x Aura RGB, 1 x Clear CMOS, 1 x COM Port, 1 x Front Panel Audio (AAFP), 1 x LPT, 1 x S/PDIF Out, 1 x SPI TPM (14-1pin), 1 x 20-3 pin System Panel with Chassis intrude function
bios
  • 128 Mb Flash ROM, UEFI AMI BIOS
  • Features ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode
warranty 2 years
