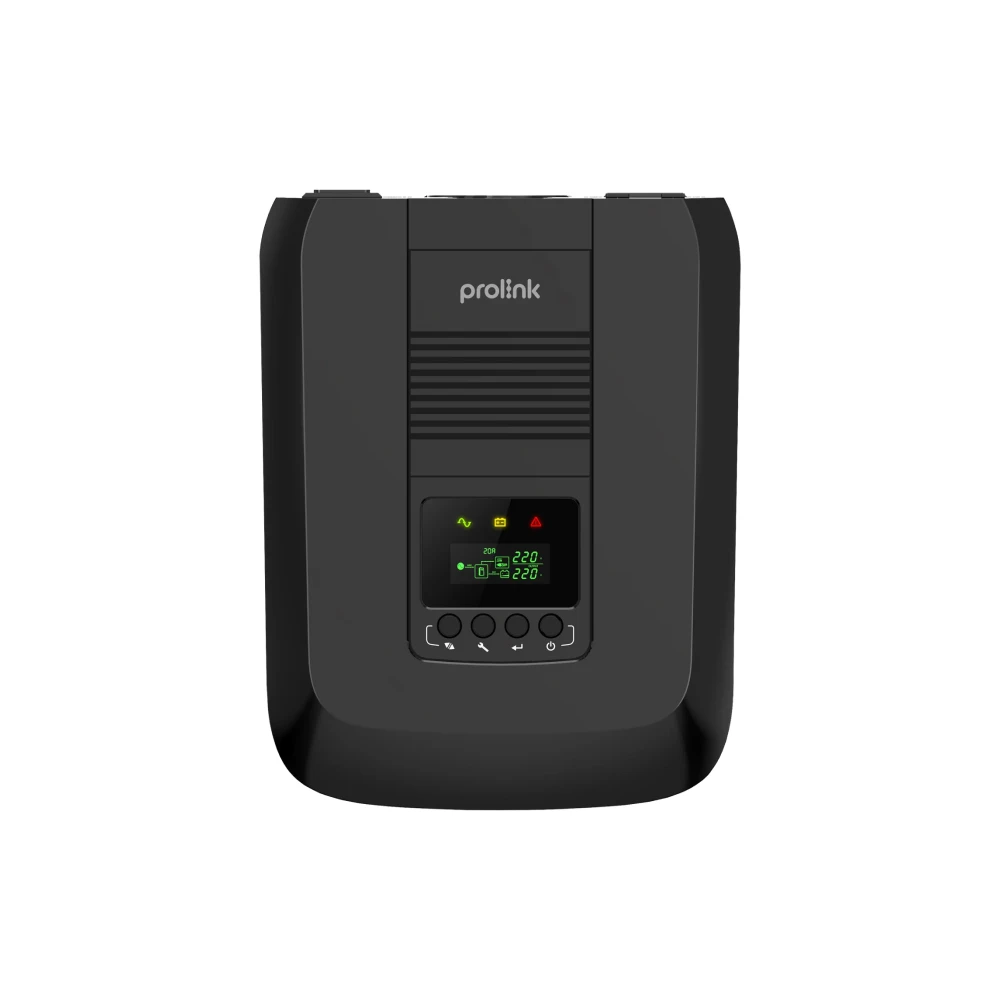

IPS Series Power Inverter
- Selectable voltage range
- Auto restart and recharge upon AC recovery
- Narrow/wide input range selection
- LCD Display
- Warranty 2 Years
| Capacity | 2400VA/1800W |
| Input voltage | 220-240VAC |
| Input voltage range | 170-280VAC (narrow range setting) |
| 90-280VAC (wide range setting) |
| Input Frequency | 50/60Hz Auto Sensing |
| Output voltage | 230VAC |
| Transfer time | 10-20ms |
| Output Efficiency | AC mode: >95% |
| Battery mode: >80% |
| AC Battery Charging current | 10A/15A/20A (selectable) |
| Nominal DC Voltage | 24VDC |
| Maximum Battery Capacity | 200Ah |
| Alarm | High temperature - Sounding every 0.5seconds |
| Low Battery - Sounding every 2 seconds |
| Overload - Sounding every 0.5 seconds |
| Faulty - Continuously sounding |
| LCD Display | Input voltage, output voltage, load level, battery level, overload and fault alarm |
| LED Display |
|
| Line mode 1 (charge current > 3A) | Green Flashing |
| Line mode 1 (charge current < 3A) | Green Lighting |
| Off mode Charging | Green Flashing |
| Battery Mode | Yellow Lighting |
| Fault | Red Lighting |
| Overload | Red Flashing |
