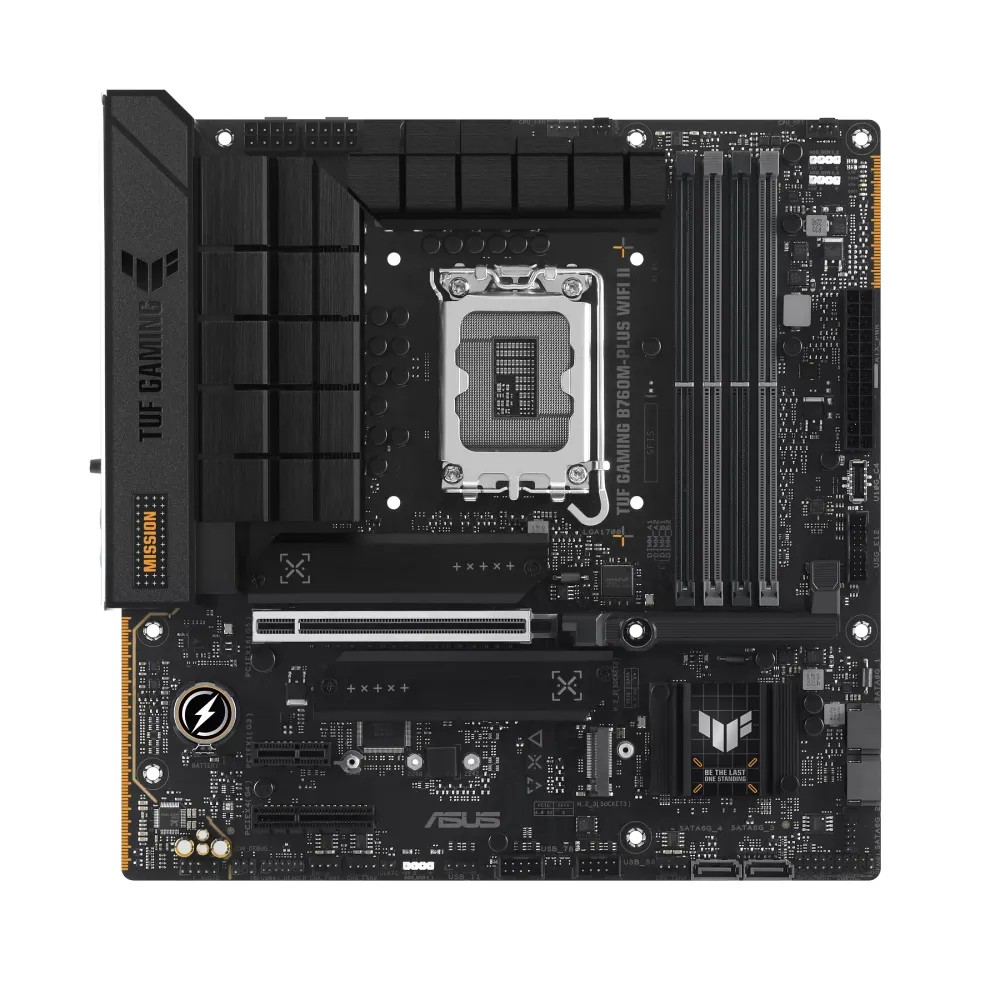

Asus TUF GAMING B760M-PLUS WIFI II

1,041,000 Ks

Choose Specifications

LGA 1700 (12th Gen, 13th Gen)

(Available Stock: 1)

1

Description

ASUS TUF GAMING B760M-PLUS WIFI II / Intel® LGA1700 (14th/13th/12th Gen) / Intel® B760 Chipset / mATX / Dual Channel DDR5 / Max 192GB @ 7800+(OC) / 1x PCIe 5.0 x16 / 3x M.2 slots (PCIe 4.0) + 4x SATA / Realtek 2.5Gb Ethernet / Wi-Fi 6E + BT 5.3 / USB 20Gbps Type-C

form factor mATX Form Factor
chipset Intel® B760 Chipset
storage
  • Supports 3 x M.2 slots (M.2_1/M.2_2 supports PCIe 4.0 x4, M.2_3 supports PCIe 4.0 x2)
  • 4 x SATA 6Gb/s ports
  • Supports SATA RAID 0/1/5/10
expansion slots
  • 1 x PCIe 5.0 x16 slot (CPU)
  • 1 x PCIe 4.0 x4 slot (Chipset)
  • 1 x PCIe 3.0 x1 slot (Chipset)
audio Realtek 7.1 Surround Sound High Definition Audio CODEC | Rear optical S/PDIF out port
warranty TUF Certification card included
os Windows® 11, Windows® 10 64-bit
ram
  • 4 x DIMM slots, Max. 192GB
  • DDR5 7800+(OC)/.../4800 Non-ECC, Un-buffered Memory
  • Dual Channel
  • Supports Intel® XMP, OptiMem II
model TUF GAMING B760M-PLUS WIFI II
feature
  • ASUS TUF PROTECTION (DIGI+ VRM, LANGuard, SafeSlot Core+)
  • ASUS Q-Design (M.2 Q-Latch, PCIe Slot Q-Release, Q-Antenna, Q-LED)
  • AURA Sync (3 x Addressable Gen 2 headers)
  • Thunderbolt™ (USB4®) header
network
  • Realtek 2.5Gb Ethernet (TUF LANGuard)
  • Wi-Fi 6E (2x2 802.11ax, 2.4/5/6GHz)
  • Bluetooth® v5.3

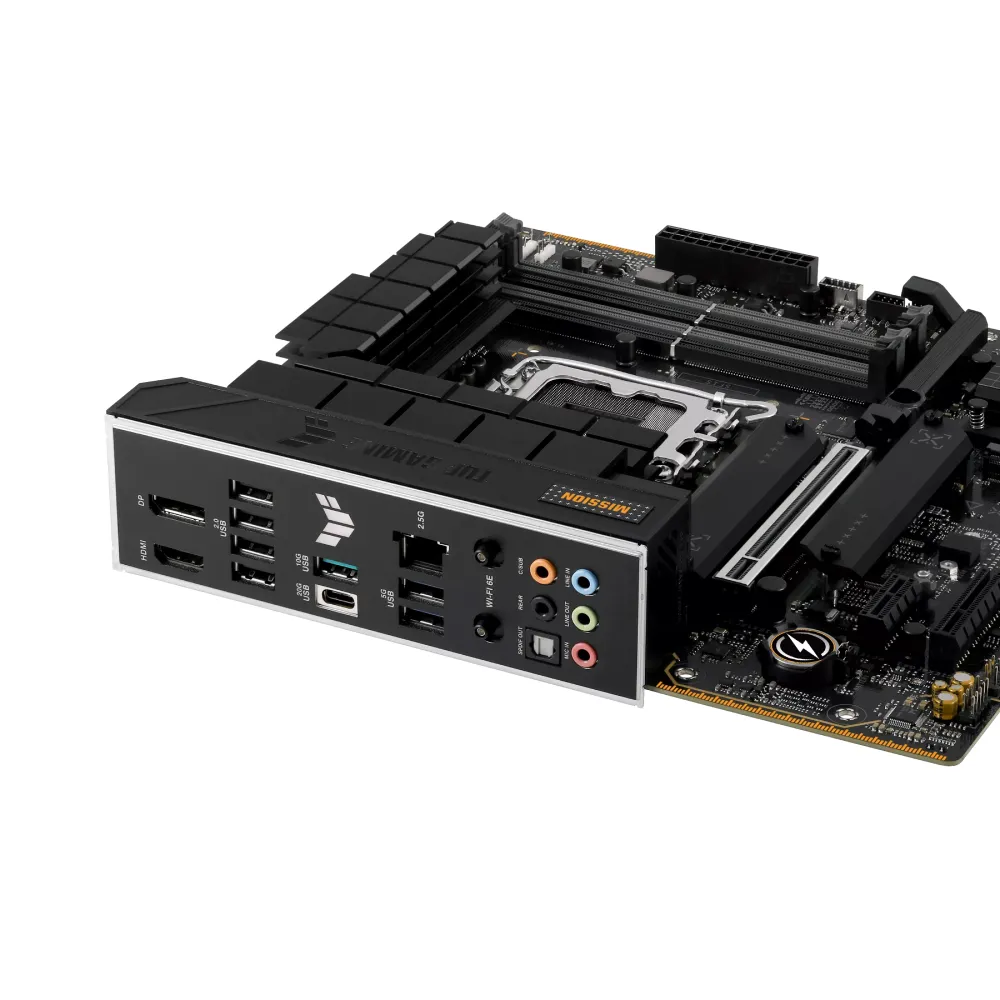

rear usb
  • 1 x USB 20Gbps port (Type-C®)
  • 1 x USB 10Gbps port (Type-A)
  • 2 x USB 5Gbps ports (Type-A)
  • 4 x USB 2.0 ports (Type-A)
  • Total 8 ports
cpu socket
  • Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
graphics ports 1 x DisplayPort (max. 4K@60Hz) | 1 x HDMI™ port (4K@60Hz)
internal usb headers
  • 1 x USB 10Gbps connector (supports USB Type-C®)
  • 1 x USB 5Gbps header (supports 2 ports)
  • 3 x USB 2.0 headers (supports 5 ports)
